Portable Lithium Battery Marking machine for steel with good quality

Handheld lithium battery dot peen marking machine for metal for nameplate

Factory direct sales High Depth handheld dot peen marking machine for Vin number

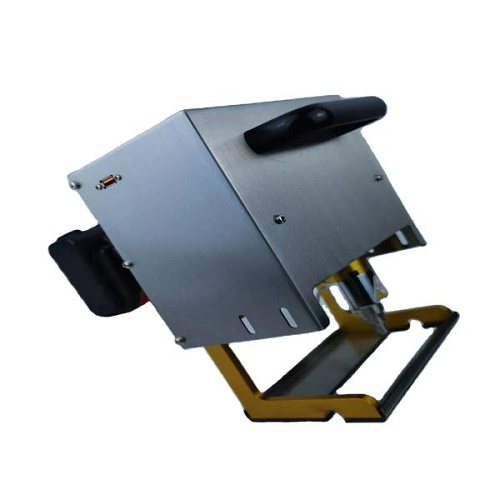

High Class Handheld Battery Dot Peen Metal Marking Machine

Work Principle:The computer controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece, thereby forming a corresponding on the workpiece. Graphic or characters.

Parameters:1). Marking range: 90mm × 30mm

2). Marking depth: 0.01-2mm

3). Driving voltage: DC24V

4). Power supply mode: Lithium Battery.

5). Print content: Any Chinese and English characters and numbers. Graphics

6). Print effect: clear and beautiful

7). Any graphic that containing in the CAD

8）The machine supports reading data directly from the U disk

9). Machine weight: 5.5kgs, Dimention: 28cm *14.5cm*10.5cm
