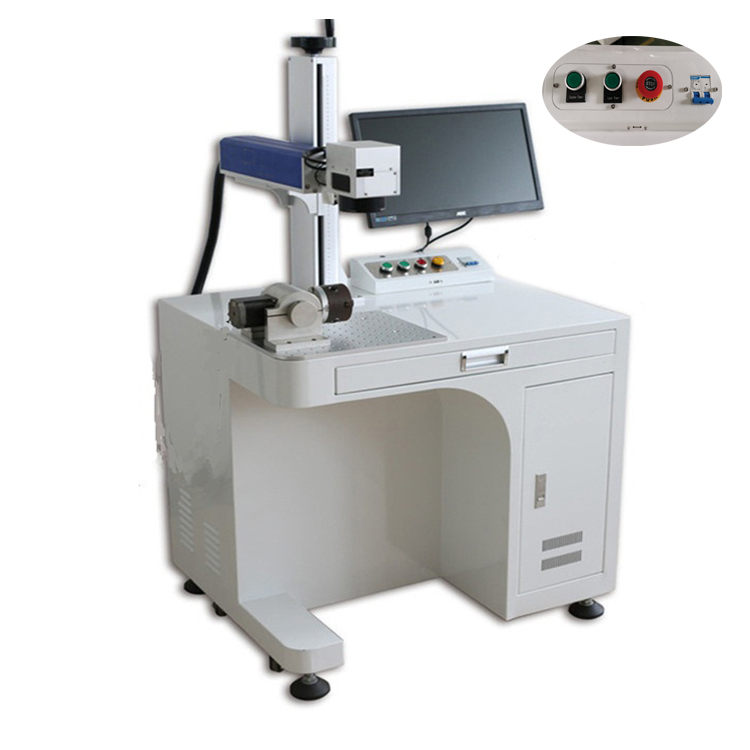

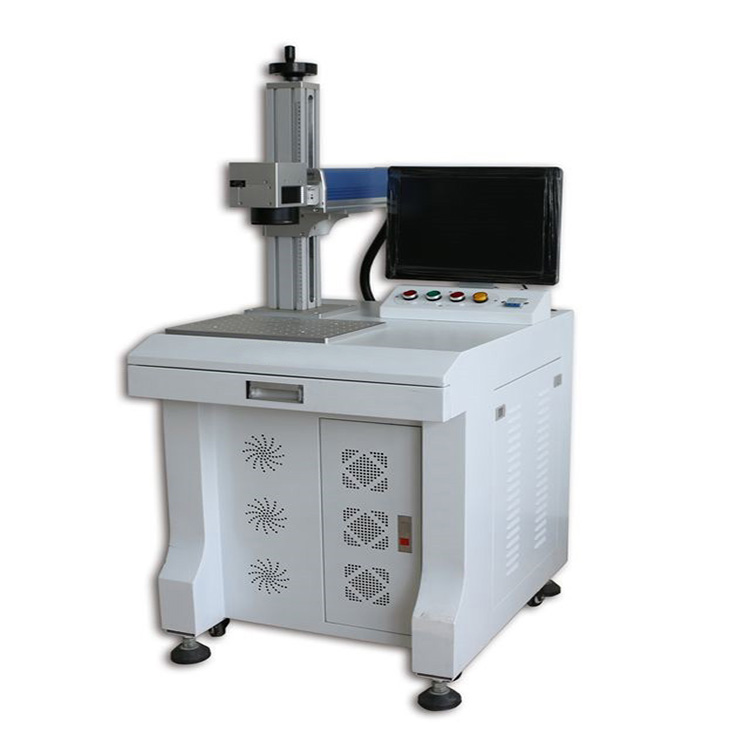

20w table type fiber laser marking machine for metal namepate have high stability and are suitable for marking most small and medium workpieces. The users can fix the workpiece on the working table, and the high stability of the bench-top marking machines allow users to pay more attention to the performance of the mark, rather than the position of the mark.
Luyue laser marking machines are easy to operate with low learning cost. The fiber laser marking machines have extremely high marking accuracy and marking speed, which reduce the labor intensity and difficulty of users and make permanent marking easy to implement. The marking effect is clear and beautiful, with high readability, improving product traceability and identification.
Luyue laser marking machines have high compatibility. Our fiber laser marking machines can easily mark on various metals and nonmetal, and the marking depth, speed and power can be adjusted by themselves to meet the different marking needs of different industries.
Luyue laser marking machine has extremely high stability and reliability. The fiber laser marking machines do not have any consumables. As long as there is electricity in the user's production environment, the marking machine can work according to the user's idea without any maintenance. The Luyue technical team will debug the most suitable parameters according to the customer's workpiece to ensure that the customer does not need to do any tedious testing.
Laser Type | Fiber Laser |
Cooling Mode | Air Cooling |
Laser Source Brand | RAYCUS |
Laser Power | 20W 30W 50W 100W |
Weight | 100 KG |
Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
Control Software | Ezcad Control Software |
Warranty | 2 years |
Marking Speed | 0~7000m/s |
Marking Depth | 0.01-2mm |
Marking Area | 100mm*100mm, 200mm*200mm, 300mm*300mm |
Minimum Line Width | 0.01mm |
Operating Voltage | 220V//50Hz |
1. Customized and OEM orders are supported.
2. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc.
3. No MOQ required.
4. Sincerely looking for distributors all over the world.
