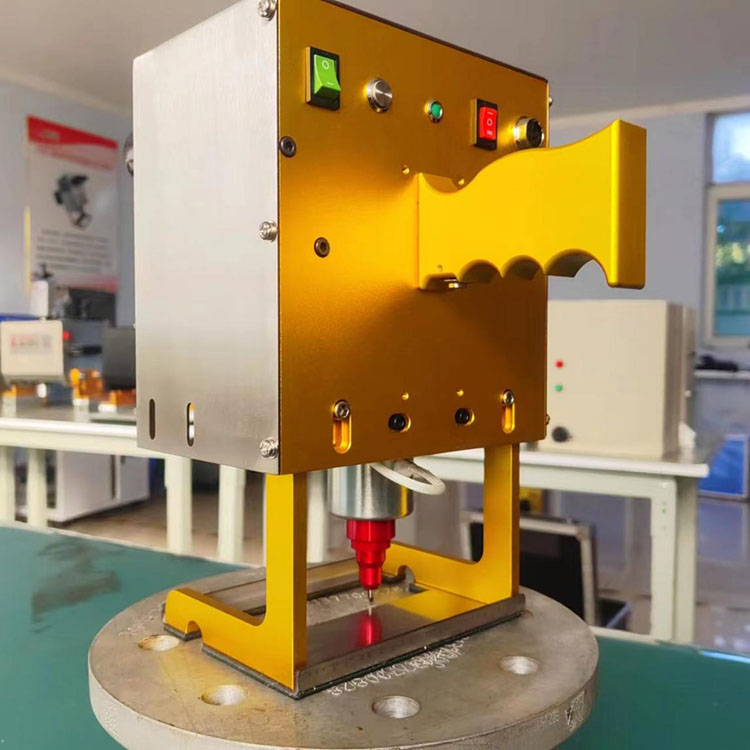

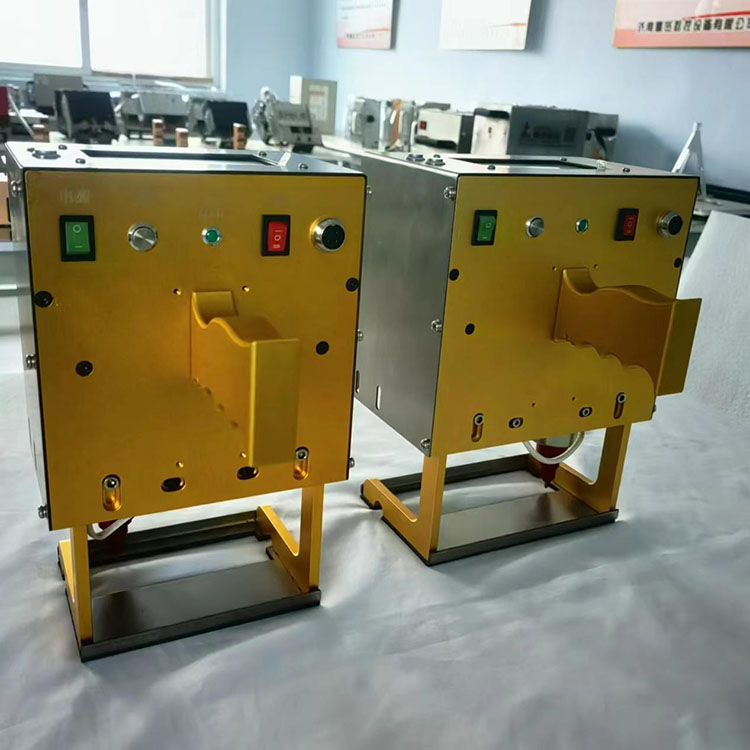

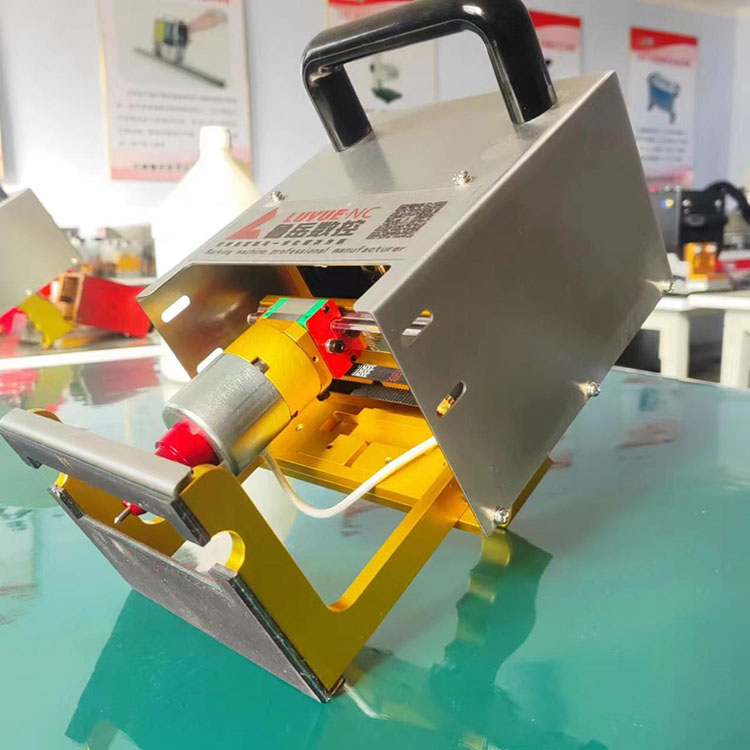

Electric Handheld Dot Peen Marking Machine

Electric handheld dot peen marking machine is mainly used for cars and motorcycle parts vin number marking, mechanical metal parts engraving, and other industrial medium and big size parts engraving and marking. It is very helpful for your product identification traceability.

The whole machine adopts imported industrial components, ensure the marking accuracy and long service life.

Work Principle:

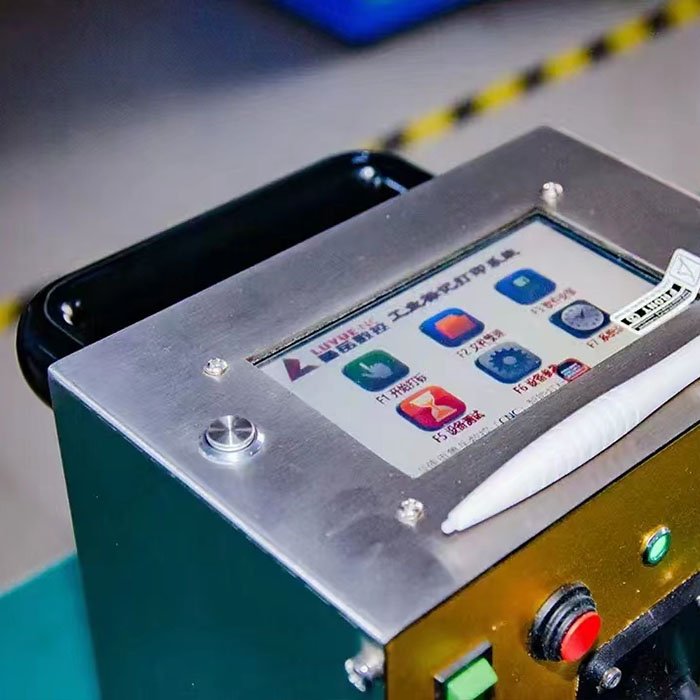

The computer (this machine is a micro touch screen computer) controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece, thereby forming a corresponding on the workpiece. Graphic or characters.

Parameters:

1). Marking range: 90mm × 30mm

2). Marking depth: 0.01-2mm

3). Driving voltage: DC24V

4). Power supply mode: Lithium Battery.

5). Print content: Any Chinese and English characters and numbers. Graphics

6). Print effect: clear and beautiful

7). Any graphic that containing in the CAD

8). The machine supports reading data directly from the U disk

9). Machine weight: 5kgs, dimention: 28cm *14.5cm*10.5cm
