handheld litjium Battery electriclaser engraving machine for metal for tyre

Battery-powered handheld laser engraving machine for metal Luyue Mini-handheld Fiber Laser Marking Machine is a newly designed model by Luyue CNC Equipment Co. Ltd. Small size and light weight: Electric type 6.4kg and Battery type 7.8kgs. Lithium battery offline marking can last 4 hours. Embedded screen computer, no need to connect external computer. We have been specialized in the Marking machine for more than 10 years. Our products have a good price advantage and steady quality. We are looking for distributors all over the world.

Send Inquiry

Product Description

Battery-powered handheld laser engraving machine for metal

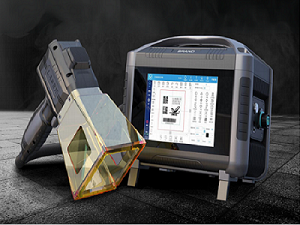

Mini-handheld Fiber Laser Marking Machine

1. Small size and light weight (6.4KG)

2. Support lithium battery offline marking

3. Support multiple file format types

4. With self-start and stop function. Prolong the life of lithium battery, the life and laser and galvanometer motor is longer.

5. Red light positioning, no need to adjust focus, easy operate, clearer marking.

6. Laser Power: 20w 30w 50w are available

7. Laser wavelength: 1064nm

8. Marking area: 60mm x 60mm, 100mm x 100mm

9. Operation interface: Embedded 7-inch touch screen. Linux operation system.

Portable metal engraving laser machine 20w parameter:

Product Parameters	LYF-B20/LYF-B30/LYF-B50	LYF-20/LYF-30/LYF-50
Machine Material	Engineering plastics
Laser Type	Fiber Laser Source
Laser Power	20W/30W/50W
Laser Wavelength	1064 nm
Max Pulse Energy	0.7mJ
Adjustable Frequency Range	1-600 kHz
Printing Mode	High-precision two-dimensional scanning mode
Marking Speed	≤7000mm/s
Operation Snterface	Embedded 7-inch touch screen, Linux operating system
Cooling System	Built-in Air Cooling
Marking Line Type	Both dot matrix and vector can be used
Marking Range	60mmx60mm(standard)\100mmx100mm(optional)
Positioning Method	Red Light Positioning
Marking Character Position	Any line within the marking range
Print Speed	600characters/second(specific speed is related to product material and print content)
Languages Supported	Simplified Chinese, English, Korean, German,Arabic numerals,etc.
File Format	png、jpg、bmp、dxf、plt、svg
Barcode/QR code	CODE25、CODE39、CODE49、CODE93、CODE126、CODE128、EAN13、 EAN128、PDF417、CODBAR、UPCA、 UPCA CHK、 UPCE CHK、 DataMatrix, QRCode,etc.
Input Voltage	220V/110V
Maximum Power Consumption	20W 250W-30W 280W-50W 380W
Machine Net Weight	Weight with lithium battery:7.8KG	Weight without lithium battery:6.4KG
battery Life	About 4 hours (lithium battery)
Charge Time	1 hour 30 minutes (lithium battery)
Adapt To The Temperature	0-40℃
Ambient Relative Humidity	30 -85 RH (no condensation)
Appearance Size	330mm280mm200mm
Marking Type	QRcode,barcode,Chinese, English, date, logo, pattern, etc.
