hanheld lightweight metal fiber laser marking machine

hanheld lightweight metal fiber laser marking machine is a newly designed model by Luyue CNC Equipment Co. Ltd. Small size and light weight: Electric type 6.4kg and Battery type 7.8kgs. Lithium battery offline marking can last 4 hours. Embedded screen computer, no need to connect external computer. We have been specialized in the Marking machine for more than 10 years. Our products have a good price advantage and steady quality. We are looking for distributors all over the world.

Send Inquiry

Product Description

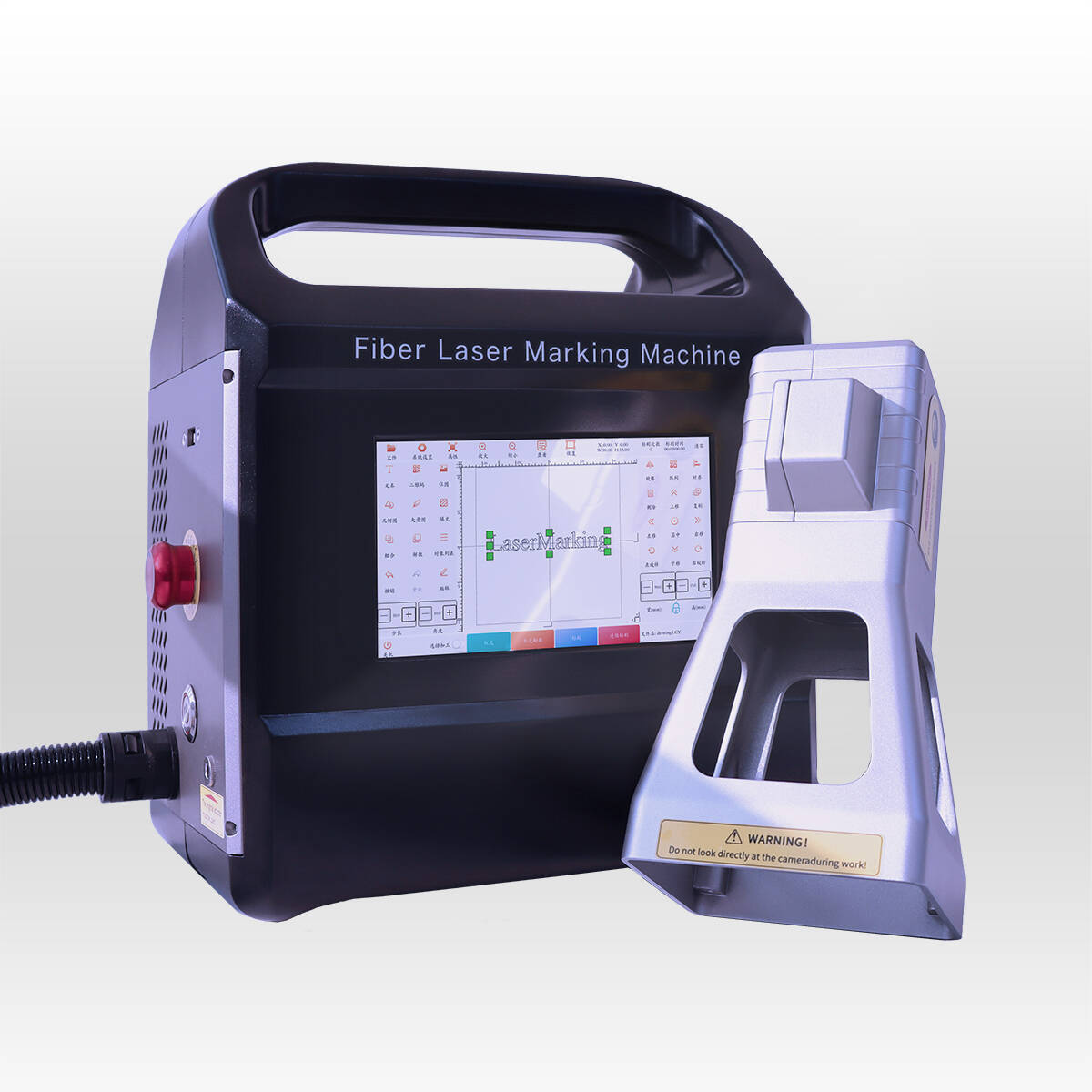

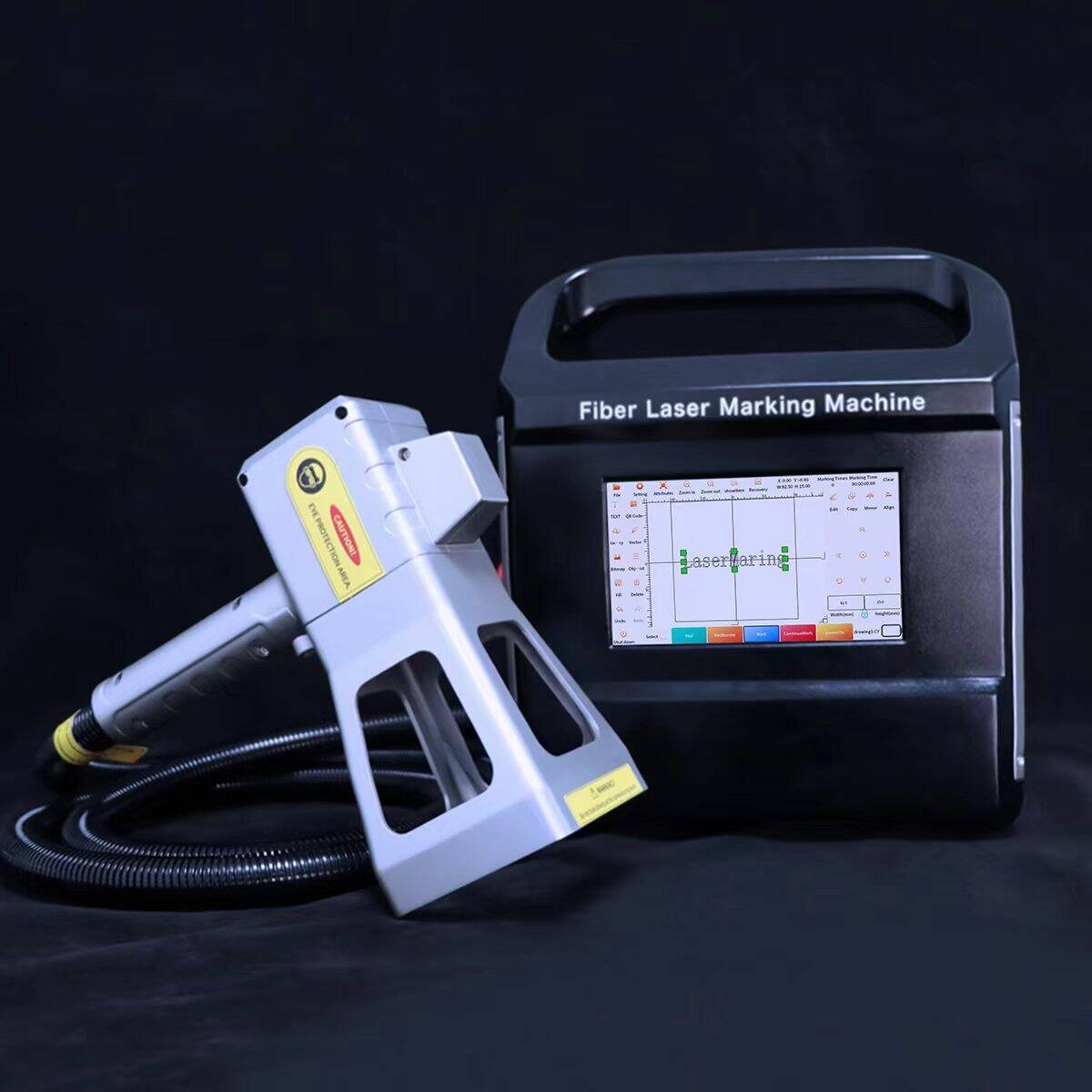

Hanheld lightweight metal fiber laser marking machine

Mini-handheld Fiber Laser Marking Machine

1. Small size and light weight (6.4KG)

2. Support lithium battery offline marking

3. Support multiple file format types

4. With self-start and stop function. Prolong the life of lithium battery, the life and laser and galvanometer motor is longer.

5. Red light positioning, no need to adjust focus, easy operate, clearer marking.

6. Laser Power: 20w 30w 50w are available

7. Laser wavelength: 1064nm

8. Marking area: 60mm x 60mm, 100mm x 100mm

9. Operation interface: Embedded 7-inch touch screen. Linux operation system.

Product Parameters	LYF-B20/LYF-B30/LYF-B50	LYF-20/LYF-30/LYF-50
Machine Material	Engineering plastics
Laser Type	Fiber Laser Source
Laser Power	20W/30W/50W
Laser Wavelength	1064 nm
Max Pulse Energy	0.7mJ
Adjustable Frequency Range	1-600 kHz
Printing Mode	High-precision two-dimensional scanning mode
Marking Speed	≤7000mm/s
Operation Snterface	Embedded 7-inch touch screen, Linux operating system
Cooling System	Built-in Air Cooling
Marking Line Type	Both dot matrix and vector can be used
Marking Range	60mmx60mm(standard)\100mmx100mm(optional)
Positioning Method	Red Light Positioning
Marking Character Position	Any line within the marking range
Print Speed	600characters/second(specific speed is related to product material and print content)
Languages Supported	Simplified Chinese, Traditional Chinese, English, Korean, Russian, Japanese, Arabic numerals, etc. Special requirements can be added
File Format	JPG/PNG/BMP/DXF/SVG/PLT
Printing Type	QR code, barcode, Chinese, English, numbers, logos, patterns, etc.
Input Voltage	220V/110V
Maximum Power Consumption	20W 250W-30W 280W-50W 380W
Machine Net Weight	Weight with lithium battery:7.8KG	Weight without lithium battery:6.4KG
Battery Continuous Working	About 4 hours (lithium battery)
Charge Time	1 hour 30 minutes (lithium battery)
Adapt To The Temperature	0-40℃
Ambient Relative Humidity	30 -85 RH (no condensation)
Appearance Size	330mm280mm200mm
Marking Type	QRcode,barcode,Chinese, English, date, logo, pattern, etc.
Printing Orientation	Unidirectional Printing
Marking Depth	0.2-1.2mm
Applicable Industries	Mold, rubber, metal processing, aluminum alloy doors and windows, ceramic tile bathroom, whole house custom home, stone,packaging,

The warranty period of the equipment is 24 months after the final acceptance. During the warranty period, if the equipment fails normal using, the supplier shall be responsible for free maintenance service and replacement of damaged parts. If the equipment fails due to artificial damage by the customer, the supplier shall provide paid service. The response of the supplier to the maintenance service shall not exceed 24 hours.
