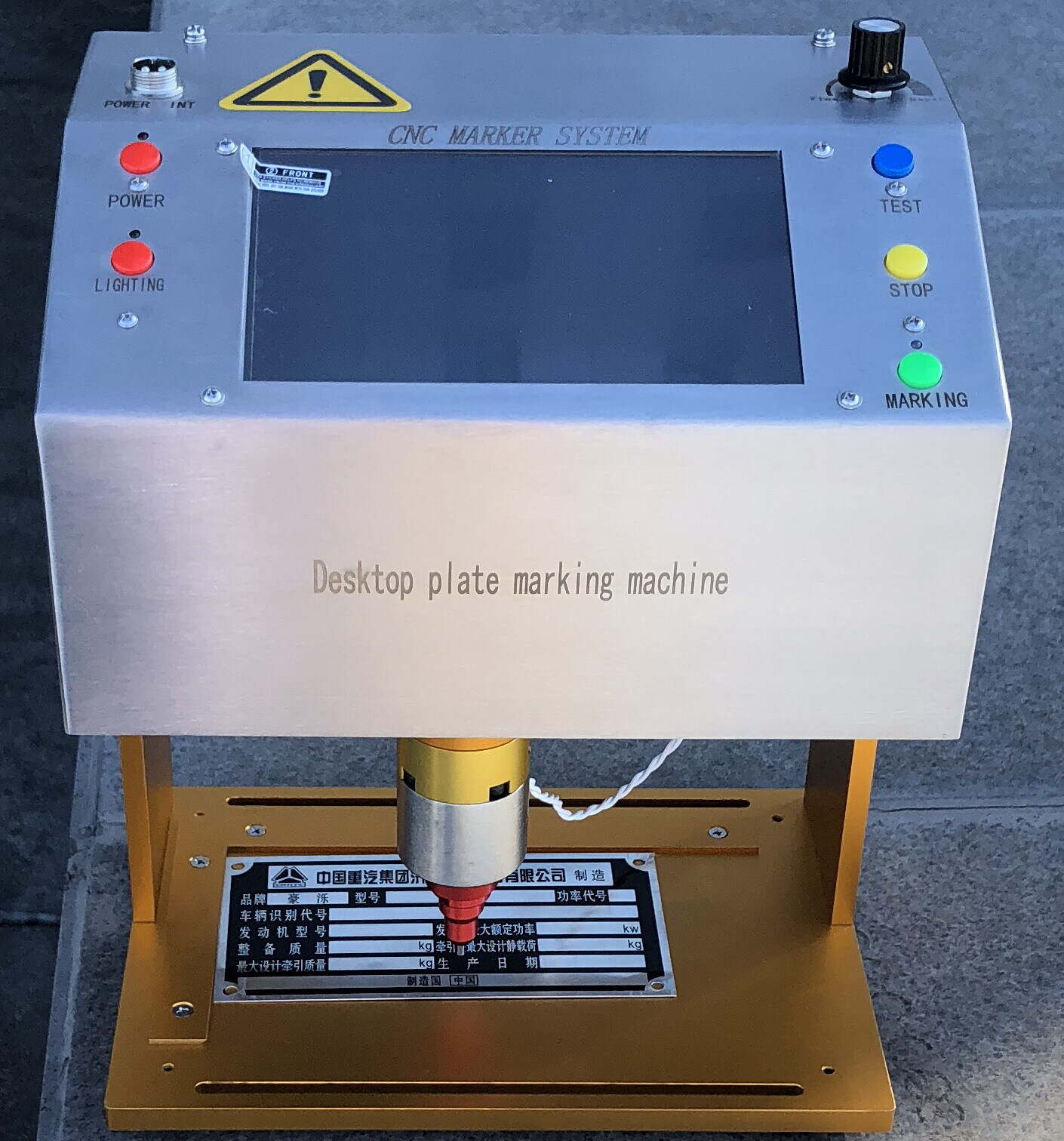

High Configuration Electric Metal Nameplate Engraving Machine 160mm*100mm

High Configuration Electric Metal Nameplate Engraving Machine 160mm*100mm The LYD-700plus series Electric Metal Nameplate Engraving Machine is our high cofigurations electrical devices for various metal plates or tag engraving and marking. The metal tag engraving machines for sale in our catalog are small, compact, integrated and can do fast permanent marking on metal materials such as brass plates, stainless steel plates, iron plates and aluminum tags etc.
The LYD-700plus marking machine required nothing except electric power, it's installed a touch screen with built-in software.

Send Inquiry

Product Description

Electric dot peen marking machine is industrial product, mainly used for metal fat plates or tags engraving.It is very helpful for your product identification traceability.

The whole machine adopts imported industrial components, with thickness machine case ensure the machine is sturdy and durable with excellent marking accuracy.

Electric Metal Nameplate Engraving Machine Work Principle:

The installed touchscreen controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece, thereby forming a corresponding on the workpiece. Graphic or characters.

Electric Metal Nameplate Engraving Machine Parameters:

1). Marking range:160mm × 100mm

2). Marking depth: 0.01-0.05mm

3). Power supply: AC 100V -240V

4). Print content: Any Chinese and English characters and numbers. Graphics

5). Print effect: clear and beautiful

6). No air power is required.
