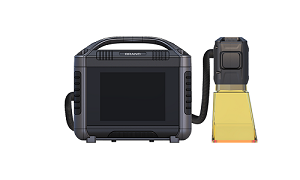

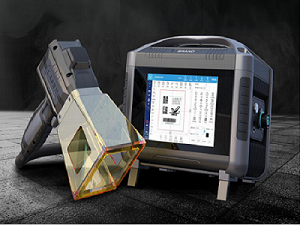

Lithium Battery Electric handheld  laser engraving machine for plastic gloves
  • Lithium Battery Electric handheld  laser engraving machine for plastic glovesLithium Battery Electric handheld  laser engraving machine for plastic gloves
  • Lithium Battery Electric handheld  laser engraving machine for plastic glovesLithium Battery Electric handheld  laser engraving machine for plastic gloves
  • Lithium Battery Electric handheld  laser engraving machine for plastic glovesLithium Battery Electric handheld  laser engraving machine for plastic gloves

Lithium Battery Electric handheld laser engraving machine for plastic gloves

Battery-powered handheld laser engraving machine for metal Luyue Mini-handheld Fiber Laser Marking Machine is a newly designed model by Luyue CNC Equipment Co. Ltd. Small size and light weight: Electric type 6.4kg and Battery type 7.8kgs. Lithium battery offline marking can last 4 hours. Embedded screen computer, no need to connect external computer. We have been specialized in the Marking machine for more than 10 years. Our products have a good price advantage and steady quality. We are looking for distributors all over the world.

Send Inquiry

Product Description

Battery-powered handheld laser engraving machine for metal

Mini-handheld Fiber Laser Marking Machine

1. Small size and light weight (6.4KG)

2. Support lithium battery offline marking

3. Support multiple file format types

4. With self-start and stop function. Prolong the life of lithium battery, the life and laser and galvanometer motor is longer.

5. Red light positioning, no need to adjust focus, easy operate, clearer marking.

6. Laser Power: 20w 30w 50w are available

7. Laser wavelength: 1064nm

8. Marking area: 60mm x 60mm, 100mm x 100mm

9. Operation interface: Embedded 7-inch touch screen. Linux operation system.


Portable metal engraving laser machine 20w parameter:

Product Parameters

LYF-B20/LYF-B30/LYF-B50

LYF-20/LYF-30/LYF-50

Machine Material

Engineering plastics

Laser Type

Fiber Laser Source

Laser Power

20W/30W/50W

Laser Wavelength

1064 nm

Max Pulse Energy

0.7mJ

Adjustable Frequency Range

1-600 kHz

Printing Mode

High-precision two-dimensional scanning mode

Marking Speed

≤7000mm/s

Operation Snterface

Embedded 7-inch touch screen, Linux operating system

Cooling System

Built-in Air Cooling

Marking Line Type

Both dot matrix and vector can be used

Marking Range

60mmx60mm(standard)\100mmx100mm(optional)

Positioning Method

Red Light Positioning

Marking Character Position

Any line within the marking range

Print Speed

600characters/second(specific speed is related to product material and

print content)

Languages Supported

Simplified Chinese, English, Korean, German,Arabic numerals,etc.

File Format

pngjpgbmpdxfpltsvg



Barcode/QR code

CODE25CODE39CODE49CODE93CODE126CODE128EAN13EAN128PDF417CODBARUPCAUPCA CHKUPCE CHKDataMatrix, QRCode,etc.

Input Voltage

220V/110V

Maximum Power Consumption

20W 250W-30W 280W-50W 380W

Machine Net Weight

Weight with lithium battery:7.8KG

Weight without lithium battery:6.4KG

battery Life

About 4 hours (lithium battery)

Charge Time

1 hour 30 minutes (lithium battery)

Adapt To The Temperature

0-40℃

Ambient Relative Humidity

30 -85 RH (no condensation)

Appearance Size

330mm*280mm*200mm

Marking Type

QRcode,barcode,Chinese, English, date, logo, pattern, etc.
